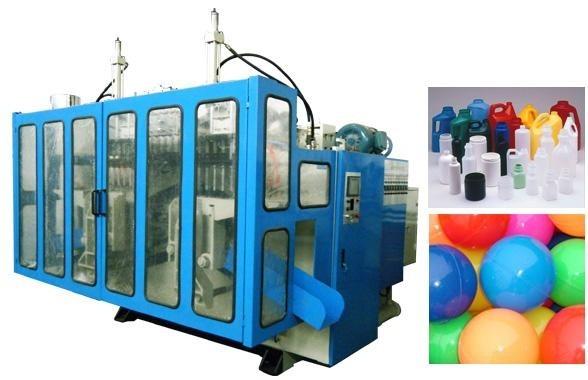

PLC Control Extrusion Blow Molding Machine 65mm Screw

Brand Name : APOLLO

Certification : CE/SGS

Place of Origin : JIANGSU, CHINA

MOQ : 1 Set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 20 sets per month

Delivery Time : 30 working days

Packaging Details : Film packing/Carton packing/Wooden packing

Screw diameter : 65mm

No.of heating zone : 3 zones

Oil pump drive power : 7.5 KW

Max.size of mold : 330X360mm

Max.die diameter : 140mm

Air volume : 0.7 M/MIN

Contact Now

ABLB65II This type of machine is sutiable to produce different shapes of plastic bottles from 500ml to 4L.
Adopt Misubishi PLC from Japan Contactor use Schneider from France Most of spareparts of hydraulic system and pneumatic system are impored from Japan,Korea,France and T

Related technical parameter(ABLB65II)

Max. Product volume 4 liters Dry cycle 800X2pc/h
Screw diameter 65mm Screw L/D ratio 24 L/D
Screw drive power 18.5 KW Screw heating capacity 5.7 KW
No.of heating zone 3 zones Output of HDPE 80 KG/H
Oil pump drive power 7.5 KW Clamping force 45 KN
Max.size of mold 330X360mm Mold stroke 148-508mm
Max.die diameter 140mm Blow pressure 0.6mpa
Air volume 0.7 M/MIN Cooling water pressure 0.3mpa
Water consumption 65 L/MIN

PLC adds the man-machine interface, the touching type is operated, it is convenient to be simple and direct.
One pair of Iow plastification systems of Senior One, energy-efficient,mix and smelt outstandingly.
The centre enters the material, the pushing out of the mould head of many patterns, remove and make and converge the line completely, meet the demands of different structure products.
Two parallel, the mould organization of translation, the centre locks the mould, balance the strength of receiving,move rapidly, put it in place gentlely.
